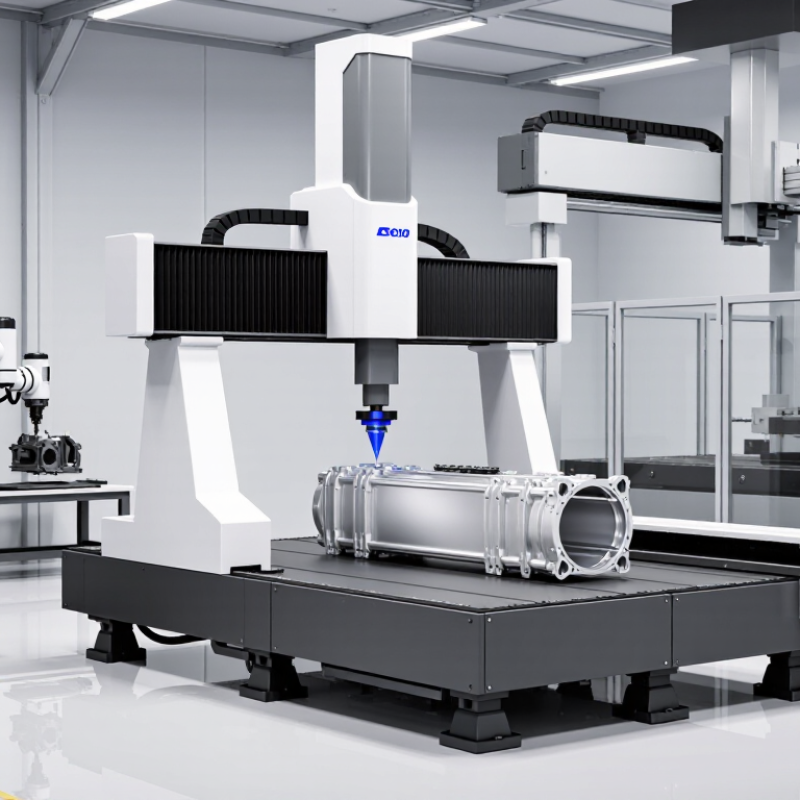

2026 Top Coordinate Measuring Machine Buying Guide?

Choosing a Coordinate Measuring Machine in 2026 requires more than comparing price tags and advertised accuracy. Manufacturers now offer bridge, gantry, portable arm, optical, and multisensor systems for very different inspection environments. A machine that performs brilliantly beside a controlled laboratory bench may struggle near coolant, vibration, dust, or changing temperatures.

This buying guide examines the decisions experienced quality engineers make before approving a purchase. It considers measurement volume, workpiece material, tolerance requirements, probing technology, software compatibility, operator training, maintenance, and long-term support. A small automotive component may need rapid scanning, while a large aerospace fixture may demand extended travel and stable geometric performance. Those needs are not interchangeable.

Accuracy claims deserve careful attention. Buyers should review the stated standards, temperature conditions, certification methods, and repeatability data. Request practical demonstrations using parts similar to your own. Ask how calibration is performed and how quickly service teams respond. Cheap ownership can become expensive after software upgrades, stylus replacement, installation, and annual verification.

Do not trust one specification.

Real-world workflow matters. An advanced Coordinate Measuring Machine may remain underused if programming feels difficult or operators cannot interpret its reports. Conversely, a simpler system may deliver stronger value when inspection routines are stable and well documented. This guide does not pretend to remove every uncertainty. Supplier promises can sound convincing, and even experienced teams sometimes overlook environmental preparation. Use the recommendations as a structured starting point, then confirm every critical claim with evidence, reference customers, and your own sample measurements.

2026 Top Coordinate Measuring Machine Buying Guide?
Table of Contents [Hide]
1 Classify CMMs by 3-Axis, 5-Axis, Portable, and Vision Work Envelopes
2 Set Accuracy Targets Using ISO 10360 MPE E₀/E₁₅₀ and Sub-2 µm Needs
3 Select Probes by 0.1 µm Resolution, Scanning Speed, and Feature Complexity
4 Compare Throughput with Automated Loading, 3-2-1 Fixturing, and 24/7 Use
5 Audit Ownership Costs: Calibration, Software, Training, and ISO/IEC 17025 Compliance

Classify CMMs by 3-Axis, 5-Axis, Portable, and Vision Work Envelopes

2026 Top Coordinate Measuring Machine Buying Guide

A CMM’s work envelope should match the part, access needs, and inspection routine. Three-axis models measure X, Y, and Z positions with stable, repeatable motion. They suit machined plates, housings, and parts with open probe access. A large machine is not automatically better. Excessive travel can increase floor space, setup time, and maintenance demands.

Five-axis CMMs add rotary motion around the probe or workpiece. This helps reach angled holes, turbine-like surfaces, and deep features with fewer repositioning steps. The measurement path becomes more flexible, but programming and operator training become more demanding. Portable CMMs fit large assemblies, factory floors, and repair areas. Their articulated arms or laser systems reduce transport problems. However, vibration, temperature changes, and operator technique can affect results. Vision CMMs use cameras for small, delicate, or flat components. They work well with printed patterns, edges, and electronic parts, although reflective surfaces may require careful lighting.

Tips: Measure the largest real part, not the average one. Leave probe clearance around clamps and fixtures. Test one difficult feature before purchasing. Ask for repeatability data under realistic temperature conditions. A portable system may seem convenient, yet frequent recalibration can consume time. I have seen buyers focus on scanning speed and overlook access angles. That mistake is easy to repeat. Document your inspection volume, surface types, tolerance range, and available floor space before comparing machines.

2026 Top Coordinate Measuring Machine Buying Guide: Classify CMMs by 3-Axis, 5-Axis, Portable, and Vision Work Envelopes

Buying Dimension 3-Axis Bridge CMM 5-Axis CMM Portable CMM Vision CMM
Typical Work Envelope Small to very large volumes; commonly from about 300 × 300 × 200 mm to more than 2,000 × 4,000 × 1,500 mm. Usually medium to large volumes; commonly from about 500 × 500 × 400 mm to approximately 2,000 × 3,000 × 1,500 mm. Generally suited to small, medium, or localized inspection areas; arm reach is commonly about 1.5 to 4.5 m, depending on configuration. Typically compact to medium volumes; commonly from about 200 × 150 × 100 mm to 1,000 × 800 × 300 mm.
Primary Sensor Configuration Motorized or manual articulating probe, scanning probe, or optical sensor mounted on three orthogonal axes. Probe head with two rotary axes combined with three linear axes, allowing the probe to approach features from multiple directions. Articulating measurement arm, laser scanner, or portable optical tracker with a fixed or mobile reference system. Camera-based optical system, telecentric lens, coaxial illumination, and sometimes a touch probe or laser sensor.
Typical Measurement Accuracy Approximately 1.5–5.0 µm MPE for precision bridge systems; larger machines generally have higher stated uncertainty. Approximately 2.0–8.0 µm MPE, depending on machine size, rotary head performance, probe configuration, and calibration method. Approximately 15–100 µm volumetric accuracy for many articulated arms; laser and tracker systems vary substantially by range and setup. Approximately 1–10 µm for high-quality systems under controlled lighting, temperature, calibration, and fixturing conditions.
Best Measurement Strength High-accuracy dimensional inspection, geometric tolerancing, datum evaluation, and repeatable scanning of prismatic parts. Complex freeform surfaces, deep features, undercuts, multi-sided parts, and reduced setup time for difficult geometries. Large installed parts, fixtures, vehicle or aircraft structures, on-machine inspection, and locations that cannot be moved to a lab. Fast non-contact measurement of profiles, edges, holes, printed features, small components, and two-dimensional characteristics.
Common Applications Machined components, injection molds, castings, inspection fixtures, shafts, gears, and production quality control. Aerospace components, turbine and impeller parts, complex molds, medical components, automotive parts, and freeform surfaces. Large weldments, fabricated structures, tooling, body panels, heavy machinery, field service, and reverse engineering. Electronics, precision stamping, micro-machined parts, plastics, seals, gaskets, labels, and small turned components.
Measurement Throughput Medium to high for repeat production inspection; automated CNC operation supports consistent inspection routines. High for complex parts because multiple feature directions can often be measured without repeated fixturing. Medium; setup and operator movement can affect throughput, although scanning can rapidly capture large amounts of surface data. High for small parts and batch inspection, especially when automatic edge detection and part programs are used.
Part Access and Fixturing Requires clear probe access and usually a stable fixture; parts may need rotation or re-fixturing for hidden features. Improved access to angled and obstructed features; fewer fixture changes are normally required. Very flexible access around large or installed parts; magnetic bases, tripods, or portable fixtures may be used. Requires a visible surface and suitable contrast; transparent, reflective, or very dark surfaces may need special lighting or treatment.
Environmental Requirements Best performance comes from a temperature-controlled inspection room, vibration isolation, and clean air around the machine. Requires controlled temperature and vibration conditions, particularly when high-accuracy rotary movements and scanning are used. More tolerant of factory environments, but temperature gradients, vibration, line-of-sight interruptions, and operator handling affect results. Requires stable lighting and temperature; vibration, dust, glare, and changing surface appearance can reduce optical reliability.
Operator Skill Moderate to advanced; programming, probe qualification, datum selection, GD&T interpretation, and statistical control are important. Advanced; successful operation requires knowledge of multi-axis programming, collision avoidance, probe qualification, and complex surface inspection. Moderate to advanced; results depend on arm positioning, measurement technique, reference setup, scanning strategy, and operator training. Moderate; operators need training in lighting selection, edge detection, focus, calibration, fixturing, and optical measurement limitations.
Main Advantages High accuracyRepeatabilityMature softwareWide size range Multi-direction accessFewer setupsComplex geometryEfficient scanning Flexible locationLarge-part inspectionMinimal transportFast deployment Non-contactFast 2D inspectionSmall featuresAutomated vision
Main Limitations Large machines require substantial floor space, controlled conditions, careful fixturing, and part transport to the inspection area. Higher purchase and maintenance cost; rotary-axis calibration and programming are more complex than conventional three-axis inspection. Usually lower absolute accuracy than a temperature-controlled bridge CMM; results are sensitive to setup, reach, operator technique, and environment. Limited access to hidden features and depth information; reflective, transparent, flexible, or low-contrast surfaces can be difficult to measure.
Software and Data Output Supports CAD comparison, GD&T reporting, scanning, SPC, and common formats such as DMIS, CSV, and inspection reports. Requires software with multi-axis path planning, collision checking, CAD comparison, freeform analysis, and advanced scanning support. Often includes portable inspection software, point-cloud capture, reverse engineering, CAD alignment, and mobile reporting tools. Typically includes automatic feature recognition, optical edge analysis, image processing, profile comparison, and batch reporting.
Estimated Investment Level Medium to very high, driven by volume, accuracy, scanning capability, automation, and environmental infrastructure. High to very high because of the five-axis mechanism, advanced probe head, software, calibration, and programming requirements. Medium to high; cost depends on arm reach, accuracy class, scanner type, tracking technology, and inspection software. Low to high; price depends on optical resolution, stage size, sensor options, automation, lighting, and accuracy.
Recommended Buyer Profile Manufacturers needing dependable high-accuracy inspection for repeatable production parts and formal dimensional reports. Manufacturers measuring complex surfaces or multiple orientations where reduced setups and better probe access justify the investment. Plants inspecting large, heavy, installed, or difficult-to-transport parts in production or field environments. Plants requiring rapid, repeatable, non-contact inspection of small parts, profiles, edges, holes, and surface patterns.
Key Questions Before Purchase What are the largest part dimensions, required MPE, temperature range, probe type, automation level, and available inspection-room space? How many features need multi-direction access, what rotary-axis accuracy is required, and can the team support advanced programming? Will measurements be taken in a controlled area or on the shop floor, and can the reference system remain stable during the inspection? Are the parts opaque, stable, and optically measurable, and are the required tolerances suitable for camera-based inspection?
Selection note: Work-envelope ranges and accuracy figures are representative industry ranges rather than universal specifications. Always verify the manufacturer’s MPE specification, temperature compensation range, probe configuration, calibration procedure, and applicable ISO 10360 performance test before purchasing.

Set Accuracy Targets Using ISO 10360 MPE E₀/E₁₅₀ and Sub-2 µm Needs

For a 2026 coordinate measuring machine purchase, set accuracy targets before comparing machine sizes or software features. ISO 10360 testing provides a common reference for measurement performance. E₀ typically describes the declared length measurement error, while E₁₅₀ relates to a specified 150 mm test condition or configuration. Always read the complete specification and certificate. The notation alone can hide important limits.

Sub-2 µm work demands more than a small headline number. Check the MPE at your actual measuring length, temperature range, probe arrangement, and axis direction. A machine rated near 1 µm may still struggle with a flexible part, poor fixturing, or thermal drift. Keep the inspection room close to 20°C. Control drafts, vibration, and material temperature.

Ask for traceable ISO 10360 results, calibration intervals, and uncertainty data from a competent laboratory. E₀ is useful, but it cannot represent every production feature. I have seen excellent machines produce weak results when operators rushed thermal stabilization. That detail is easy to underestimate. For reliable sub-2 µm decisions, compare the complete measurement system, including probing repeatability, stylus qualification, software strategy, and fixture stability. Leave margin between the machine’s MPE and your tolerance. Otherwise, the specification may look precise while the real inspection remains uncertain.

Select Probes by 0.1 µm Resolution, Scanning Speed, and Feature Complexity

A 2026 coordinate measuring machine purchase should begin with the probe, not the machine frame. In production, a 0.1 µm resolution sounds impressive, but resolution is not the same as measurement uncertainty. Ask for calibrated test results under your actual temperature and workholding conditions. A small thermal shift can hide the benefit of finer readout. We have seen stable fixtures outperform expensive specifications.

Choose a touch-trigger probe for simple holes, steps, and datums. It is deliberate and dependable. Scanning probes suit curved surfaces, profiles, and form checks. Their speed matters when inspection queues grow, yet speed can amplify vibration and filtering errors. Compare scanning time, point density, and repeatability on your own parts. Fast is not always better. For a 0.1 µm target, controlled acceleration and clean stylus contact may matter more than headline travel speed.

Feature complexity should guide probe flexibility. Dense impellers, deep bores, and narrow slots may need angled styli, extensions, or sensor changes. Every added component can introduce deflection, calibration time, and access limits. Review qualification routines with an experienced metrology engineer. Request traceable calibration records, uncertainty budgets, and repeatability data. I would also test the hardest feature first. That choice can expose an unrealistic buying assumption before installation. Leave room for operator training and future geometry changes. A perfectly specified probe can still fail when setup discipline is weak.

2026 Top Coordinate Measuring Machine Buying Guide

Select probes by 0.1 µm resolution, scanning speed, and feature complexity

Typical engineering planning targets: simple prismatic features can use approximately 1.0 µm probe resolution at up to 20 mm/s, while freeform surfaces generally benefit from 0.5 µm resolution at around 10 mm/s. Micro-features and tight-tolerance geometries may require 0.1 µm resolution and slower scanning near 2 mm/s to preserve measurement stability.

Compare Throughput with Automated Loading, 3-2-1 Fixturing, and 24/7 Use

A 2026 coordinate measuring machine should be judged by delivered parts per hour, not probe speed alone. A 60-second inspection and 20-second manual loading time produce about 45 parts hourly, before stoppages. Automated loading can reduce handling, but only when pallets, door cycles, and software recovery are properly engineered. The International Federation of Robotics reported 541,302 industrial robots installed worldwide in 2023, a 10% annual increase. That trend supports automation, but it does not guarantee better CMM throughput.

3-2-1 fixturing gives each part repeatable contact against three primary points, two secondary points, and one tertiary point. This reduces repositioning and operator judgment. It also makes loading more consistent across shifts. I would test this with actual castings, not perfect sample blocks. Burrs, coolant, and thermal drift often expose weak fixture designs. A fast machine can still become a bottleneck.

For 24/7 use, compare unattended runtime, recovery behavior, calibration intervals, and maintenance access. The machine should detect probe collisions, empty pallets, temperature changes, and measurement alarms safely. ISO 10360-2 acceptance testing helps verify volumetric accuracy, but it does not measure your real production uptime. Deloitte’s 2024 Smart Manufacturing and Operations Survey found that 86% of manufacturers viewed smart manufacturing as important to competitiveness within five years. The practical lesson is less glamorous: record cycle time, loading time, failure time, and first-pass yield during a representative trial. Data may challenge the initial purchase assumption.

Audit Ownership Costs: Calibration, Software, Training, and ISO/IEC 17025 Compliance

Buying a coordinate measuring machine in 2026 requires more than comparing accuracy figures and table sizes. In my experience, ownership costs become visible after installation. A yearly calibration may require certified technicians, environmental checks, transport, and machine downtime. Budget for those hours, not only the invoice.

Software can quietly become the largest recurring expense. Check license terms, update fees, data export options, and measurement programming support. Training also deserves a practical calculation. A new operator may need classroom instruction, supervised programming, and refresher sessions after six months. One missed setup step can distort a report, even when the machine remains accurate. Small errors matter.

ISO/IEC 17025 compliance demands controlled calibration records, measurement traceability, competent personnel, and documented procedures. Ask whether calibration certificates identify standards, uncertainty, environmental conditions, and due dates. Keep inspection reports beside equipment histories, not in scattered email folders. An internal audit can expose weak record control before an external assessor does. Still, compliance estimates are rarely perfect. Production changes, staff turnover, and urgent recalibration can increase costs. Leave contingency funds and review the ownership model annually. Reliability is built through evidence, not confident promises.
